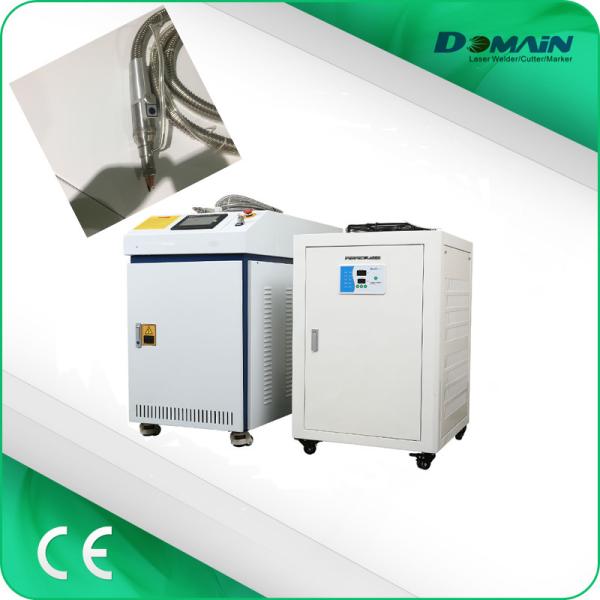

Brass Aluminum Handheld Optical 2000w Fiber Laser Welder

Name: Brass Aluminum Handheld Optical 2000w Fiber Laser Welder
Brand: Domainlaser
Price: 6999 USD

Brand Name : Domainlaser

Model Number : CY-W1000FS/CY-W1500FS/CY-W2000FS

Certification : CE,ISO9001

Place of Origin : China

MOQ : 1 unit

Price : 6999USD-29999USD

Payment Terms : L/C, T/T, , D/P, D/A, Western Union

Supply Ability : 100 units/month

Delivery Time : 7-10 working days

Packaging Details : Plywood cases

Condition : New

Warranty : 2 years

After-sales service provided : Free spare parts,Video technical support

Usage : weld materials of stainless steel

Motor type : AC Motor

Application : Fiber handheld laser spot welder

Power supply : 220VAC 10% / 50-60HZ/ 380VAC 10% / 50-60HZ

Product name : 1080nm Laser Soldering

Welding depth : 0.1-4.5mm

Welding penetration : 0.1-4.5mm

Applicable materials : Many kinds of materials, Aluminum, stainless steel, Aluminum, brass, and etc

Max Power consumaption : 5Kw

Contact Now

500w 1000w 1500w 2000w brass aluminum handheld laser welding machine handheld optical fiber laser welder

Laser type	Nd: YAG
Input power	6KW/12KW
Laser frequency	0.1 ~ 50Hz
Laser wavelength	1064nm
Welding pool	0.2mm
Welding depth	1.5mm
Pulse width	0.1ms ~ 20ms
Beam size	0.3 ~ 3mm
Cooling method	Water cooling
Maximum single pulse energy	80J/100J/120J/150J(can be customized
Observation system	CCD monitoring system
Positioning accuracy	0.02mm
Working voltage	220V/380v/50HZ
Repetitive positioning accuracy	± 0.02mm
Output power	200w/300w/400w/500w
Current regulation	50---450A

Fiber handheld optical fiber laser welder

1. The welding spot ability is evenly distributed and has the best spot required for welding.
2. Suitable for welding all kinds of complex welds, various devices, and welds of thin plates within 1.5mm
3.Using imported ceramic condenser cavity imported from the United Kingdom, corrosion resistance, high temperature resistance, long life,
4. Handheld is more convenient and fast, with small restrictions on space and workpiece size, flexible and convenient welding, up to 3 meters fiber, optional 5m fiber
5. The whole machine adopts dual-fiber optical path with good ductility and strong mobility.

China Handheld Fiber Laser Welding Machine for metal

Using the latest generation fiber laser source and Independently developed ,XTLASER hand-held laser welding machine Filled in the
blank of hand-held welding in laser equipment industry.

Its advantages are simple operation, welding seam beautiful, fast welding speed and no consumables. Welding in thin stainless
steel plate, iron plate, aluminum plate and other metal materials can perfectly replace the traditional argon arc welding and
electric welding technology.

Can be widely used in cabinets, kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution
box, stainless steel home and other industries complex and irregular welding procedures.

Characteristics

Features & advantages

1. Fast welding speed, 2~10 times faster than traditional welding.

2. Easy operating need no training

3. Welding seam beautiful smooth and beautiful, don’t need polish, save your time
No deformation or welding scar, firm welding of the workpiece.

4. Laser welding has less consumables and long service life.

5. Safer, more environmentally friendly.

The hand-held laser welding machine uses a fiber laser. The laser achieves long-distance output through the fiber. The price is still cheap, the focus is still on the welding function and the quality of the process is stronger than that of the hard light spot welding machine. The cheaper laser welding machine used to be the hard light spot laser welding machine. The main disadvantage is that the equipment is relatively "stupid", not just occupying. Large space, welding process and application range is relatively limited, welding speed is not fast enough, poor flexibility is not a problem. And some handheld fiber laser welding machines use the new technology of wobble laser welding head (swaying) to achieve various parameters such as light spot adjustment, so you don't need to worry about the distance between the workpieces is too large to affect the welding (generally the distance can be within 3 -5MM can be welded), significantly improve the application function and scope of welding, reduce welding difficulty!

Product Tags:

Fiber Laser brass Welder

Handheld Fiber Laser Welder

Wholesale Brass Aluminum Handheld Optical 2000w Fiber Laser Welder from china suppliers

Brass Aluminum Handheld Optical 2000w Fiber Laser Welder Images
